Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: oZocenter
  • Model Number: CH-Y
  • Voltage: 220V
  • Appliance: bleaching, fish farming, waste water/pool water/drinking water
  • Products: Ozone machine, UV sterilizer, Booter pump, Venturi and mixer
  • Mixing way: Venturi or Mxing pump
  • Ozone output: 10G, 20G, 30G, 40G 50G and 60G/Hr
  • Ozone adjustable range: 20%~100%
  • Ozone produced method: corona discharge
  • Ozone produced material: Enamel ozone tube
  • Ozone tube cooling method: Water cooling
  • Warranty: 1 year

Packaging & Delivery

Packaging Details Export wooden box
Delivery Time 7-15 working days upon the receive of payment

Specifications

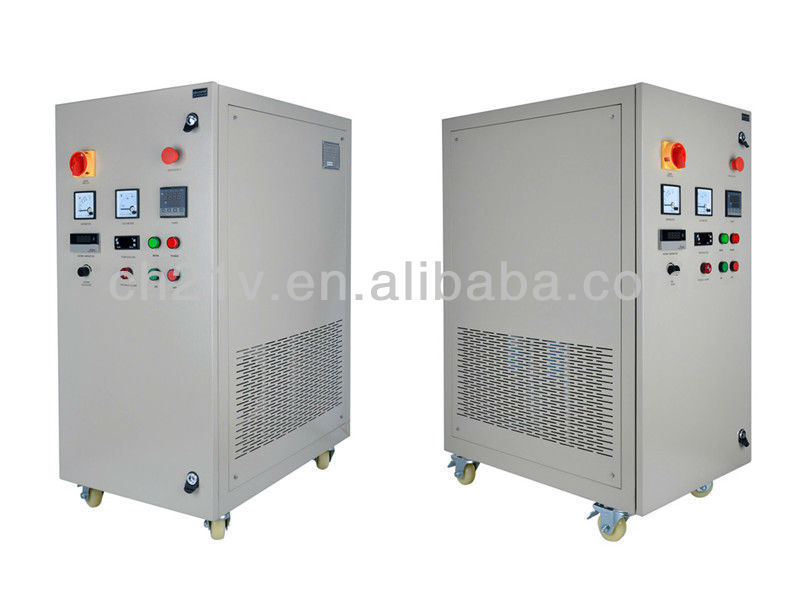

Swimming pool Ozone Generator
1.Powerful kill bacteria,virus,algae
2.Easy to install
3.PSA oxygen generator

2013 Industrial Ozone Air Purifier With High Ozone Output

.Applications:



1. Waste water treatment , Chemical oxidation ,sterilization



2. Swimming pool and SPA water sterilization and disinfection



3. Domestic water sterilizer for housing estate



4. Aquaculture and aquarium water sterilization



5. Space air purification ,sterilizing room



6. Ozonated water for sterilization and disinfection ( sea food processing ,washing

beverage bottle and Barrel, washing floor )



7. Bottle water sterilizer



8. Beverage and Drinking water disinfection



9. Ozone generator for food processing



10.Decompose chemical residual from vegetable and fruit ,Eliminate bacteria and virus for agriculture products to keep fresh ,use for food processing, cold storage .

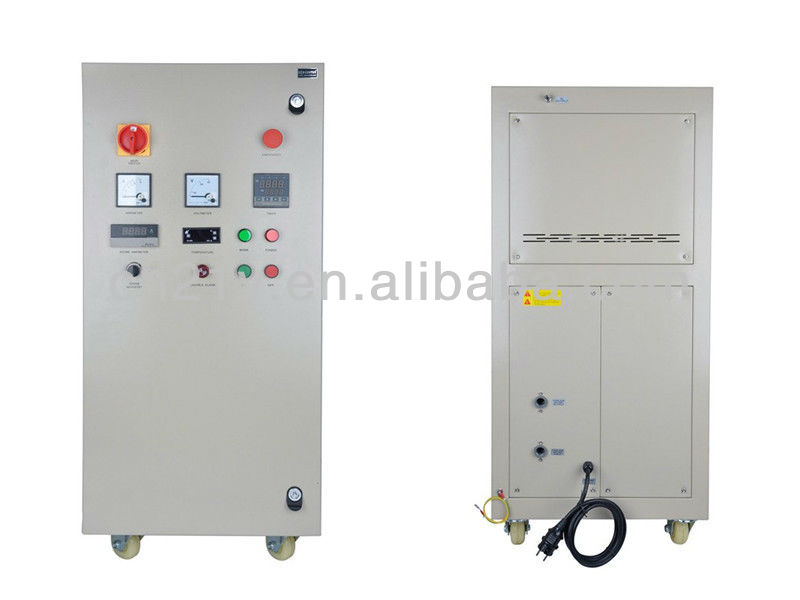

Control panel:

Ozone output adjuster, Voltmeter, Ampmeter, Timer, Cooling water temperature indicator, Ozone Ampmeter, Main switch, Power supply switch, Emergency stop, Working light, Power light, Alarm



Specifications:



ItemUnitCH-Y10GCH-Y20GCH-Y30GCH-Y40GCH-Y50G
Oxygen flow rateLPM1~32~63~105~158~18
Ozone concentrationMg/L58~8857~88.687.5~56.890~5690~60
Ozone outputG/Hr5~1011~2116~3427~5043~64
PowerKw0.960.981.431.621.85
FuseA1313151520
Cooling water flowLPM30  48
NWKG105105166170175
Sizemm500×830×1110650×1030×1230



ItemUnitCH-G100GCH-G150G
Oxygen flow rateLPM16-3224-54
Ozone concentrationMg/L58~9058~90
Ozone outputG/Hr86~111129~188
PowerKw3.54
FuseA2025
Cooling water flowLPM48
Sizemm650×1030×1230950×500×1660



Noted:

1. Above ozone capacity were tested under oxygen source

2. Net weight will be 10% different for different plug
